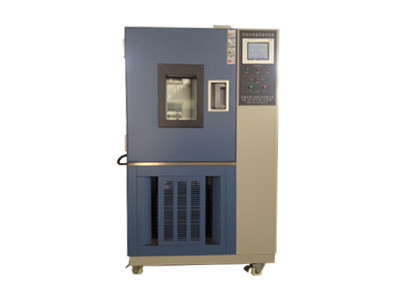

Programmable constant temperature and humidity test chamber

Programmable constant temperature and humidity test chamber

发布时间:2020-08-18

This series of products are suitable for high temperature, low temperature, high and low temperature gradients of electrical and electronics, other products, parts, materials and various electronic components, as well as the use of performance and storage under damp and hot conditions where temperature cycles change and condensation occurs on the surface Sex. The products refer to the national standards GB10589 "Technical Conditions of Low Temperature Test Chamber", GB11158 "Technical Conditions of High Temperature Test Chamber", GB10586 "Technical Conditions of Damp Heat Test Chamber". (The specific performance parameters are subject to the technical agreement.)

This series of test boxes adopt a series of advanced and human-oriented design methods such as built-in surface humidification, unique cooling machine layout and heat dissipation, and front drawer type water filling, which bring great convenience to customers for use and maintenance. The control system adopts a large screen, large-capacity touch screen, full Chinese menu, friendly man-machine dialogue, simple program setting and operation. The controller supports USB2.0 interface, realizes computer data management through special software, and supports USB printer, mouse, U disk, and has data recording function (can be used instead of temperature and humidity recorder).

model		HWJS-100	HWJS-150	HWJS-225	HWJS-408	HWJS-640	HWJS-010
Use environment requirements		5～35℃，The ground is level, well ventilated, no heat source radiation。
Performance parameter	Temperature range	0～130℃\-20～130℃\-40～130℃\-60～130℃\-70～130℃\-80～130℃(high temperature 200℃ optional)
	Temperature uniformity	≤2.0℃
	Temperature fluctuation	≤±0.5℃
	Temperature deviation	≤±2.0℃
	Humidity range	25%～98%R.H
	Humidity deviation
	Heating time	room temperature～130℃ within 40 minutes
	Cooling rate	0.7～1℃/min
material	Exterior	It is made of cold-rolled steel plate, with rounded corners and integrated graphic design, and the appearance is beautiful and atmospheric.
	Anti-rust of cabinet	Anti-rust pretreatment before spraying, and then electrostatic spraying, excellent anti-rust function.
	Liner	SUS304/2B stainless steel plate, the inner tank adopts arc design, which is convenient for maintenance.
	Insulation Materials	Ultra-fine glass insulation wool or polyurethane foam;
	Motor cooling	The box body is especially deepened, with the axial fan for ventilation, which greatly improves the heat dissipation of the motor.
	Heater	Stainless steel finned electric heating tube, non-contact solid state control, long service life;
	Observation window	Conductive film electric heating defrosting observation window with lighting lamp;
	seal	Custom-made high-quality silicone sealing strips, with a dedicated defrosting device at the door frame.
	Blower	Centrifugal impeller and asynchronous motor;
	humidifier	The built-in humidifier has the characteristics of preventing dry burning and easy maintenance.
	Water filler	The evacuated water filling port on the front side of the box body and the liquid level display function greatly facilitate the equipment to add water.
	Waterway system	High-quality submersible pumps and liquid level controllers are used to automatically replenish equipment water. The water system uses large-diameter silicone pipes or PPR pipes for water supply and drainage to prevent waterway blockage.
refrigerating system	compressor	Original imported fully enclosed refrigeration compressor;
	Cooling method	Mechanical compression single-stage/cascade refrigeration, air-cooled;
	Condenser	Fin type radiator, external rotor motor;
	Refrigerants	R23\R404A environmentally friendly refrigerant
	Other Accessories	Original imported refrigeration accessories
humidifier		Stainless steel tube sheathed heater (surface evaporation type);
Temperature and humidity control method		Cool and heat balance temperature and humidity control method
Controller		Digital display, PID self-tuning, direct display of temperature and humidity set value and measured value; (optional temperature and humidity recorder)
Inner dimension(mm)	Deep	400	500	500	600	800	1000
	Width	450	500	600	800	800	1000
	High	550	600	750	850	800	1000
safety equipment		Power leakage protection, motor overload protection, compressor overpressure, overheating, overcurrent protection, phase and phase loss protection, equipment safety grounding protection terminal, over temperature protection.
Standard equipment		One set of sample shelf, one ф50mm cable hole, universal pulley and fixed support structure, one glass observation window with electric heating defrost function, and one window light.
Remarks		1. The above parameters are the equipment without load and measured at an ambient temperature of 23℃. 2. The actual configuration of the equipment is subject to the cooperation agreement signed by both parties.
