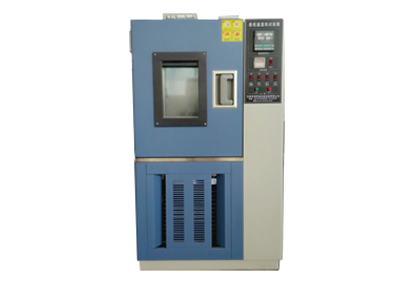

Constant temperature and humidity test chamber
发布时间:2020-08-18
| Box structure characteristics |
|
The box body of the constant temperature and humidity test box is processed and formed by CNC machine tools. The appearance is beautiful and novel, and the non-reaction handle is adopted for easy operation.
The inner shell of the box is made of imported high-grade stainless steel (SUS304) mirror panel or 304B argon arc welding, and the outer shell of the box is made of A3 steel plate spray.
Constant temperature and humidity test chamber temperature "Youyi Control" brand temperature meter imported from Japan, 7-inch high-definition true color LCD touch screen, simple screen operation, easy program editing, no key input, direct touch option on the screen. (South Korea TEMI880 instrument)
The operation interface of the controller is available in Chinese and English, and the real-time operation curve can be displayed on the screen.
It has a capacity of 100 groups of programs, 1000 segments and 999 cycle steps, and the maximum value of each segment of time is 99 hours and 59 minutes.
After data and test conditions are input, the controller has a screen lock function to avoid shutdown due to human touch.
With RS-232 or RS-485 communication interface, you can design programs on the computer, monitor the test process and perform functions such as automatic power on and off.
With the function of automatic calculation, the temperature and humidity change conditions can be corrected immediately, making the temperature and humidity control more accurate and stable.
The large observation window is equipped with illuminators to keep the inside of the box bright, and double-layer glass is used to clearly observe the situation inside the box at any time.
Equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit, ensuring the safe operation of the experiment without accidents.
Optional recorder, the printer can print and record the setting parameters and scan out the temperature and humidity curve, 4-20mA standard signal.
The left side of the box is equipped with a 50mm diameter test hole.
|
| Standards compliant: |
| GB/T5170.5-2008、GB/T10586-2006、GB/T2423.3-2006 |
| Specifications and technical parameters | ||||||
| model(CM) | HWS-100 | HWS-225 | HWS-500 | HWS-800 | HWS-1000 | |
| Studio size | 40*45*55 | 50*60*75 | 70*80*90 | 80*100*100 | 100*100*100 | |
| Dimensions | 120*100*165 | 130*115*190 | 145*140*210 | 155*160*225 | 185*160*225 | |
| power（-40℃） | 4.0(KW) | 5.5(KW) | 7.0(KW) | 9.0(KW) | 11.5(KW) | |
|
performance index |
temperature range | 0～150℃\-20～150℃\-40～150℃\-60～150℃\-70～150℃\-80～150℃ (high temperature 200℃ optional) | ||||
| Humidity range | 30～98％R.H | |||||
| Fluctuation/uniformity | ±0.5℃/±2℃ | |||||
| Humidity deviation | ＋2、-3％R.H | |||||
| Heating rate | 1.0～3.0℃/min | |||||
| Cooling rate | 0.7～1.0℃/min | |||||
|
control system |
Controller | Japan imported "Youyi Control" brand temperature meter, 7-inch high-definition true color LCD touch screen | ||||
| Accuracy range | Setting accuracy: temperature 0.1℃, humidity 1%R.H, indicating accuracy: temperature 0.1℃, humidity 1%R.H | |||||
| sensor | Platinum resistance.PT100Ω/MV | |||||
| Heating system | Fully independent system, nickel-chromium alloy electric heating heater | |||||
| Humidification system | external isolation type, all stainless steel shallow surface evaporative humidifier | |||||
| Dehumidification system | using evaporator coil dew point temperature laminar flow contact dehumidification method | |||||
| Water supply system | humidification and water supply are automatically controlled. Residual water can be recycled. Water saving and consumption reduction | |||||
| Refrigeration system | French original "Taikang" fully enclosed air-cooled single-stage/cascade compressor refrigeration method | |||||
| Circulation system | temperature-resistant and low-noise air-conditioning motor. Multi-blade centrifugal wind wheel | |||||
|
use material |
Outer box material | high-quality carbon steel plate. Phosphating electrostatic spray treatment/SUS304 stainless steel matte line hairline treatmen | ||||
| Inner box material | SUS304 stainless steel high-quality mirror light board | |||||
| Insulation material | polyurethane rigid foam/superfine glass fiber cotton | |||||
| Door frame insulation | double-layer high and low temperature aging resistance silicone rubber door seal | |||||
| Standard configuration | with 1 set of illuminated glass window, 2 test racks, 1 test lead hole (25, 50, 100mm) | |||||
| Safety protection | leakage, short circuit, over temperature, water shortage, motor overheating, compressor overpressure, overload, over current protection | |||||
| Power supply voltage | AC380V±10％ 50±0.5Hz three-phase five-wire system | |||||
| Use environment temperature | 5℃～＋30℃ ≤85％R.H | |||||
